商品の詳細:
|
| 処理: | 図面の基礎 | バランス: | 不均衡 |
|---|---|---|---|
| 構造: | 平行式スプリング弁 | カスタマイズ: | 受け入れる |
| サンプル: | 提供できます | マテリアル: | カーシックPTFE |
| OEMサービス: | 利用可能 | 春: | ステンレス鋼 |
| モデル: | 120/M37G |
Name |

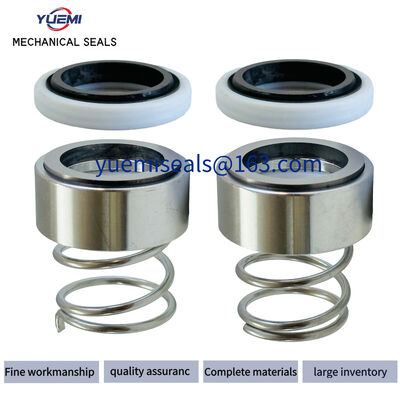

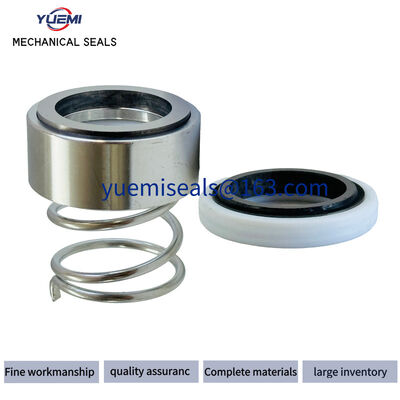

120/G6 PTEF Mechanical Seal for Water Pump |
Model |
120/G6 |
Size |
Customized |
Application |
Pump |
Material |
CA/CE/SIC/TC/NBR/EPDM/V/S.S/SUS304/SUS316 |
Delivery |
7-20 days,it depends on the quantity,If have stock it about 2-3 days |
| MODEL | D1 | D32 | D31 | D7 | L | L3 | L4 | DS | LS | D2 | D71 | L41 |
| YM120-8 | 8 | 18 | - | 21 | 19 | 13.5 | 5.5 | 1 | 3 | 9 | - | - |
| YM120-9 | 9 | 20 | - | 21/22 | 20 | 15 | 5 | 1 | 3 | 10 | - | - |
| YM120-10 | 10 | 20 | - | 22 | 20/21 | 15/16 | 5 | 1.1 | 3 | 11.1 | 19 | 8 |
| YM120-12B | 12 | 23 | 22.5 | 23/24/26 | 22 | 17 | 5 | 1.2 | 4.5 | 13.2 | 21.5 | 7 |
| YM120-14 | 14 | 27.5 | 25 | 25/26/28/30 | 22/24/25 | 17/19/20 | 5 | 1.4 | 4.5 | 15.4 | 30 | 8.5 |
| YM120-15 | 15 | 29 | 25 | 28/30 | 25 | 20 | 5 | 1.4 | 4.5 | 16.4 | - | - |
| YM120-16 | 16 | 30 | 26 | 28/30 | 25 | 19/20 | 5/6 | 1.5 | 4.5 | 17.5 | 31.8 | 10.3 |
| YM120-16S | 16 | 27 | 26 | 28/30 | 25 | 19/20 | 5/6 | 1.5 | 4.5 | 17.5 | 28 | 8.5 |
| YM120-17 | 17 | 31 | 29.5 | 33/34/35 | 25 | 20 | 5 | 1.8 | 4.5 | 18.8 | - | - |
| YM120-18 | 18 | 32 | 30.5 | 33/34/35 | 25 | 20 | 5 | 1.8 | 4.5 | 19.8 | 35 | 8.5 |
| YM120-19 | 19 | 36 | 33 | 35/36 | 25/26.5 | 20/21.5 | 5 | 1.8 | 4.5 | 20.8 | 35 | 8.5 |
| YM120-20 | 20 | 36 | 34 | 35/36 | 25 | 17.5/20 | 5/7.5 | 2 | 4.5 | 22 | 35/36 | 8.5 |
| YM120-22 | 22 | 36 | 36 | 37/38 | 28 | 21.5 | 7.5 | 2.2 | 4.5 | 24.2 | 35 | 8.5 |
| YM120-24 | 24 | 38 | 38 | 40/41 | 28/32/37 | 20/24/29 | 8 | 2.5 | 4.5 | 26.5 | 40/41 | 11 |
| YM120-25 | 25 | 41.5 | 39 | 40/41 | 34/37 | 26/29 | 8 | 2.5 | 4.5 | 26.5 | 40/41 | 11 |
| YM120-30 | 30 | 47 | 44 | 45/46 | 35/37 | 27.5/29.5 | 7.5 | 2.5 | 5 | 32.5 | 45 | 11 |
| YM120-32 | 32 | 50 | 46 | 48 | 35 | 27.5 | 7.5 | 2.5 | 5 | 34.5 | 50.8 | 12.5 |
| YM120-35 | 35 | 53 | 49 | 50/51 | 37 | 29.5 | 7.5 | 3.5 | 6 | 38.5 | 50.8 | 12.5 |
| YM120-40 | 40 | 58 | 56 | 58/60 | 40 | 31 | 9 | 3.5 | 6 | 43.5 | 60 | 12.5 |
| YM120-45 | 45 | - | 61 | 65 | 40 | 31 | 9 | 3.5 | 6 | 48.5 | 65 | 12.5 |
| YM120-50 | 50 | - | 66 | 70 | 45 | 35.5 | 9.5 | 4 | 8 | 54 | 70 | 13.5 |
| YM120-55 | 55 | - | 71 | 75 | 45 | 34 | 11 | 4 | 8 | 59 | 75 | 13.5 |
